Inner tubes and flaps

We have a variety of tread designs and sizes for passenger, truck, bus, trailer, aviation, agricultural, and industrial tires.

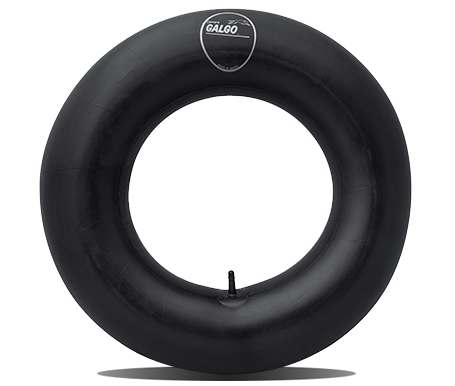

Inner Tubes

Durable and waterproof coupled with exceptional physical-mechanical properties that are designed specifically for radial and conventional tires.

Flaps

Made with rubber (synthetic and natural), they have a flat form that is adaptable to the rim and thicker reinforcement layer around the hole where the central valve passes.

Types of Inner Tubes

Waterproof, resistant and durable that guarantee a good physical and  mechanical behavior, both in radial and conventional tires. They have a union that exceeds the resistance values that are established by the NOM-121-SCFI-2004 law.

Passenger Car Tubes

FR-13

Tire Size



• 5.00-13 • 195/75R-13
• 6.00-13 • 165/70R-13
• 145R-13 • 195/70R-13
• 165R-13 • 175/65R-13
• 155/80R-13 • 205/65R-13
• 185/80R-13 • 185/60R-13
• 165/75R-13 • 205/60R-13

KR-14

Tire Size



• 7.00-14 • 205/80R-14
• 8.00-14 • 185/75R-14
• E78-14 • 215/75R-14
• F78-14 • 185/70R-14
• 175R-14 • 215/70R-14
• 195R-14 • 195/65R-14
• DR70-14 • 225/65R-14
• FR70-14 • 195/60R-14
• 185/80R-14 • 235/60R-14

FGR-15

Tire Size



• 5.00-15 • 185/75R-15
• 6.00-15 • 175/70R-15
• 145R-14 • 195/70R-15
• 165R-15 • 185/65R-15
• 165/80R-15 • 195/65R-15
• 185/80R-15 • 185/60R-15
• 165/75R-15 • 205/60R-15

GR-16 N

Tire Size



• 5.00-16 • 185/75R-16
• 6.00-16 • 175/70R-16
• 155R-16 • 195/70R-16
• 165R-16 • 185/65R-16
• 165/80R-16 • 195/65R-16
• 185/80R-16 • 195/60R-16
• 165/75R-16 • 205/60R-16

Light Truck Tubes

7.00R-15

Valve

• tr-13 6.50-15



Tire Size

• 7.00-15

• LR78-15

7.00/7.50R-15

Valve

• tr-15



Tire Size

• 7.00-15

• 7.50-15

10.00R-15

Valve

• tr-444



Tire Size

• 10.00-15

• 11.00-15

6.50R-16

Valve

• tr-15



Tire Size

• 6.00-16

• 6.50-16

7.00/7.50R-16

Valve

• tr-135



Tire Size

• 7.00-16

• 7.50-16

• LR78-16

9.00R-16

Valve

• tr-135



Tire Size

• 9.00-16

Truck/Bus Tubes

8.25R-20

Valve

• tr-442



Tire Size

• 8.25-20

9.00R-20

Valve

• tr-443



Tire Size

• 9.00-20

• 9.00R-20

10.00R-20

Valve

• tr-443



Tire Size

• 9.00-20

• 9.00R-20

10.00R-20

Valve

• tr-444



Tire Size

• 10.00-20

• 10.00R-20

11.00R-20

Valve

• tr-444



Tire Size

• 11.00-20

• 11.00R-20

11.00R-22

Valve

• tr-444



Tire Size

• 11.00-22

• 11.00R-22

11.00R-22.5

Valve

• tr-300



Tire Sizes

• 11.00-22.5

12.00R-24

Valve

• tr-444



Tire Size

• 2.00-24

11.00R-24.5

Valve

• tr-300



Tire Size

• 11.00-24.5

Industrial Tubes

6.90/6.00R-9

Valve

• tr-13



Tire Size

• 6.00-9

• 6.90-9

• 6.50-10

13.00R-24

Valve

• tr-218



Tire Size

• 13.00-24

Farm/Off Road Tubes

7.50R-16 TD

Valve

• tr-15



Tire Size

• 7.50-16 TD

10.00R-16 TD

Valve

• tr-15



Tire Size

• 10.00-16

• 11.00-16

• 11L-16 TD

10.00R-20

Valve

• tr-15



Tire Size

• 7.50-18 TD

9.5/11.2R-24

Valve

• tr-218a



Tire Size

• 9.50-24

• 11.2-24

11.25R-28

Valve

• tr-218a



Tire Size

• 11.25-28

13.6/14.9R-28

Valve

• tr-218a



Tire Size

• 3.6-28

• 14.9-28

16.9/18.40R-30

Valve

• tr-218a



Tire Size

• 16.9-30

• 18.4-30

18.4/20.8R-34

Valve

• tr-218a



Tire Size

• 18.4-34

• 20.8-34

12.4/13.9R-36

Valve

• tr-218a



Tire Size

• 12.4-36

• 13.9-36

13.6/14.9/15.5R-38

Valve

• tr-218a



Tire Size

• 13.6-38

• 14.9-38

• 15.5-38

18.40R-38

Valve

• tr-218a



Tire Size

• 16.9-38

• 18.4-38

• 20.8-38

Tire Size.

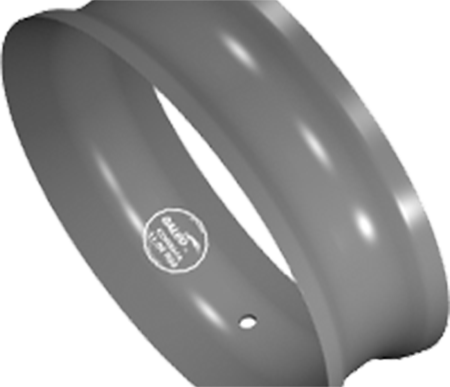

They protect the inner tubes and are placed between the tube and the rim. They are made with synthetic rubber and natural rubber which provides optimal physical properties such as high heat resistance, tension, good elongation, and hardness. The flap has a flat form that is adaptable to the rim and a thicker reinforcement layer around the hole where the central valve passes.

R16

Tire Size:
7.50-16

R17

Tire Size:
7.00/7.50-17

R20

Tire Size:
9.00/10.00/11.00/12.00

R22

Tire Size:
10.00/11.00
